Ball Valve With Rotary Actuator
- Designed and Manufactured as per
- ANSI B 16.34, BS 5351
- Pressure Testing: API 598, API 6D
- End Connection: ASME B 16.1
Features
- Compact and simple construction provides ease in maintenance without disturbing insulations and piping connections.
- Easy Operation even under high pressures.
- Full circular passages.
- Easily replaceable PTFE seats & Packing.
- Prolonged successful operation even under High Pressures.
Mounting
- Interface: ISO 5211.
- Body MOC : WCB, CF8, CF3, CF8M, CF3M (Special on Request).
- Trim MOC : CF8, CF3, CF8M, CF3M (Special on Request).
- Seat MOC : PTFE, GFT, PEEK (Special on Request).
- Size: ½” (15mm) to 8″ (200mm).

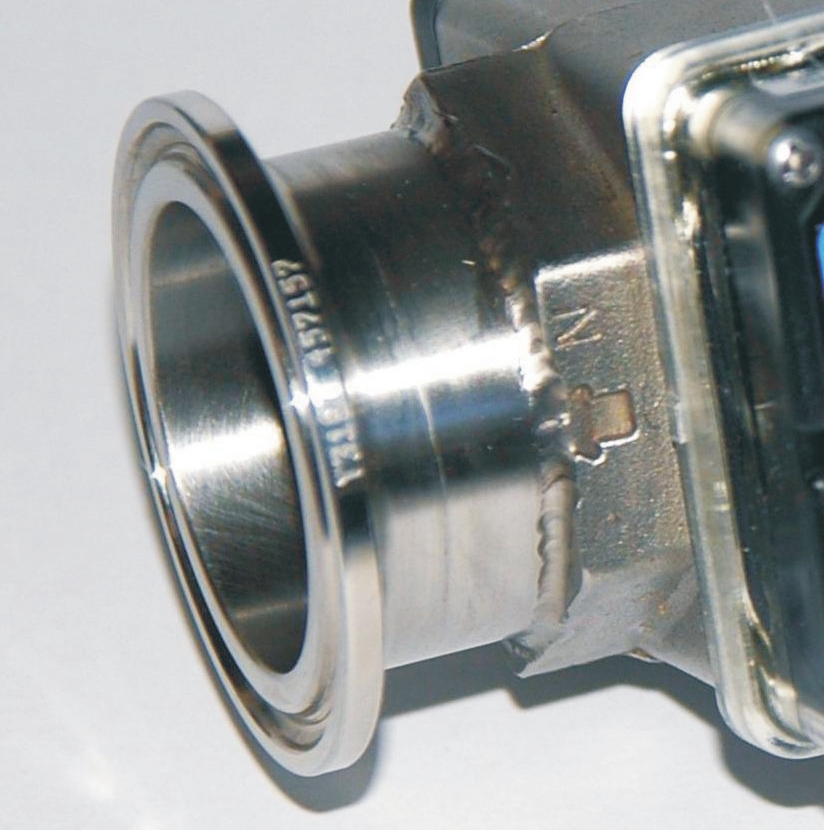

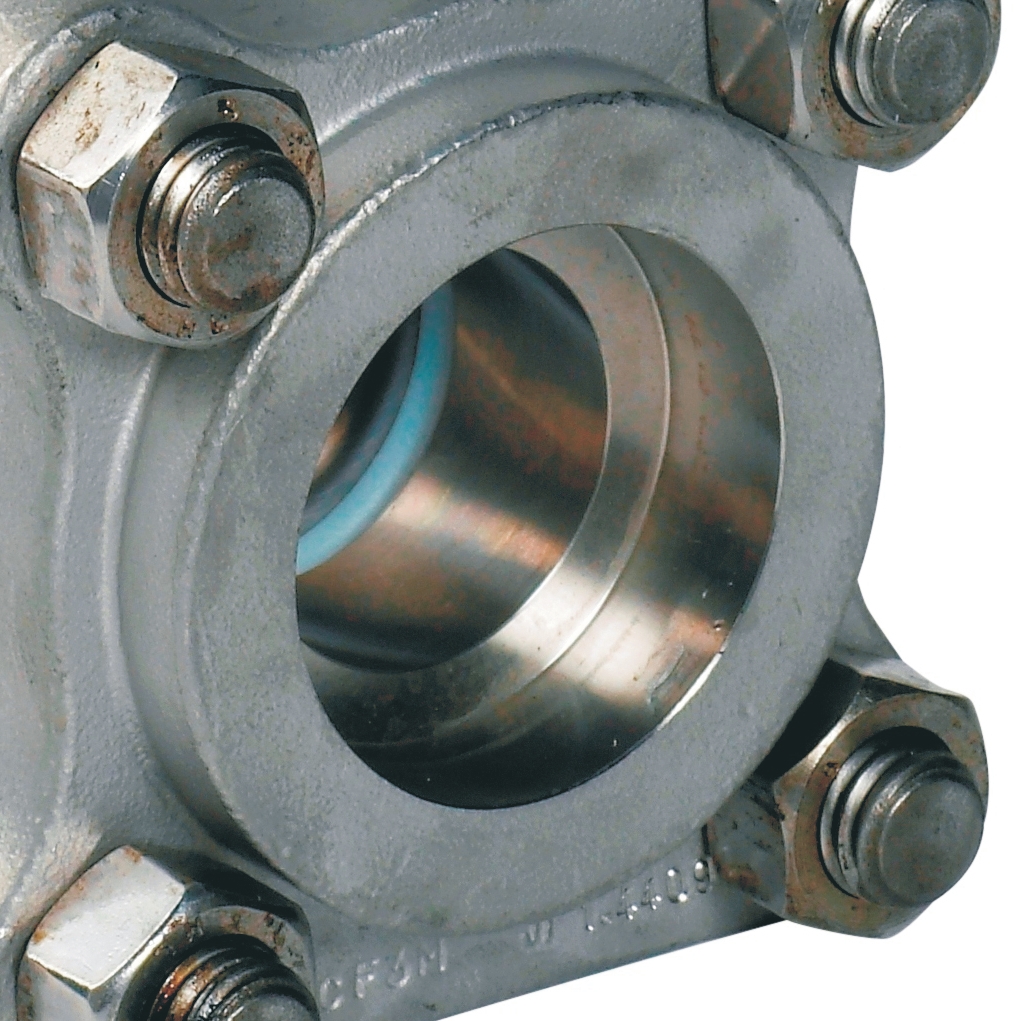

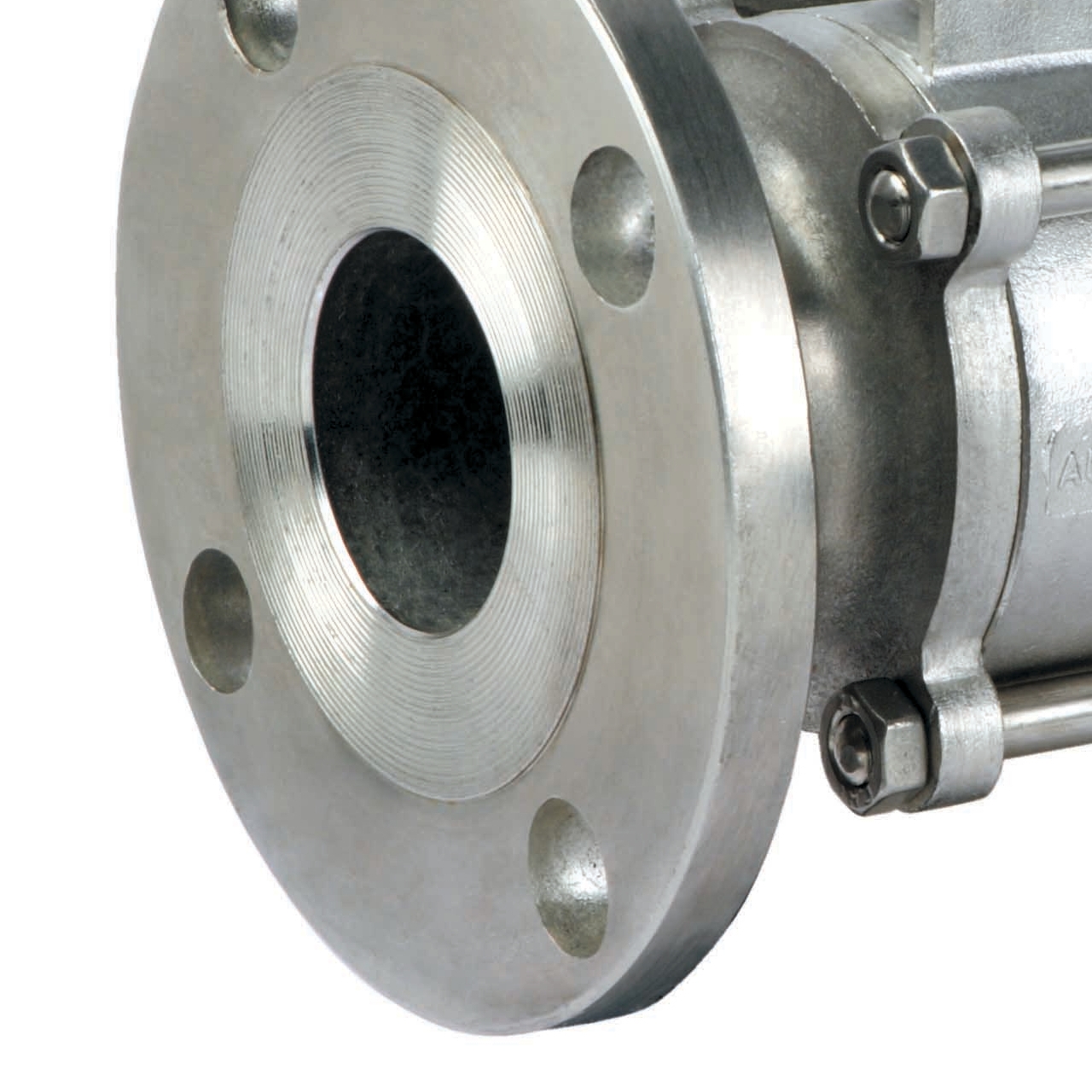

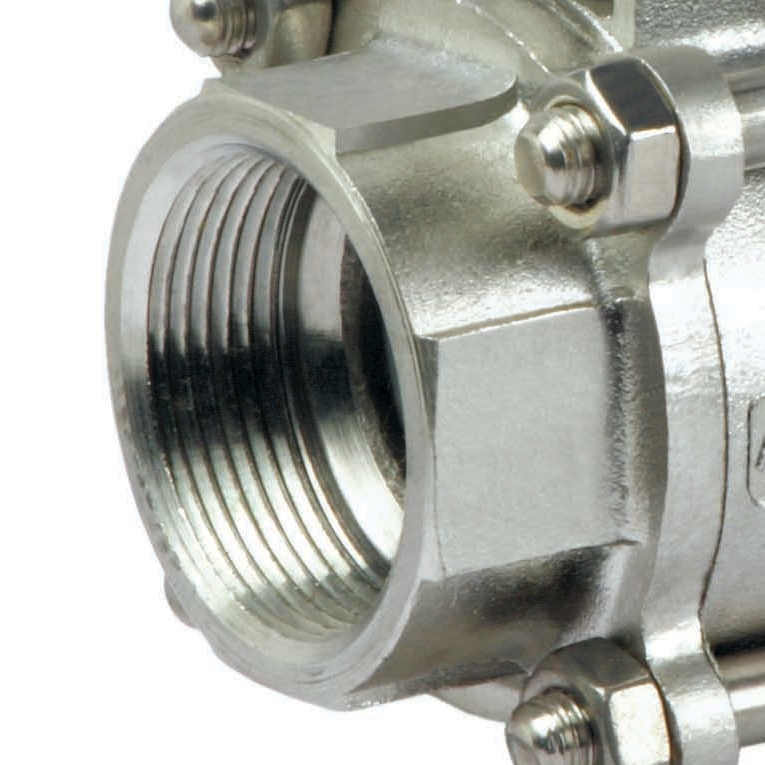

Types Of End Connection
Certifications
Product Catalogue
Enquire Now
